Aures

Advantech AURES YUNO POS System

355.000 KWD

Sale Sold out

Shipping calculated at checkout.

Universal multi-configuration & stylish POS hardware

YUNO is a robust, stylish, and compact POS terminal, designed by AURES to meet the diverse needs of the POS industry.

It is a fanless, flexible, and high-performance system, available with either a Broadwell i3 5010U or a Quad-Core Bay Trail J1900 processor.

The terminal comes in two formats:

Traditional 15.1” 4:3 screen
Wide 15.6” 16:9 screen

Both are equipped with a shock- and scratch-resistant, multi-touch capacitive screen (PCAP technology).

YUNO offers great flexibility with VESA mounting options (wall or pole installation) as well as standalone touchscreen monitor versions (15.1” and 15.6”).

The standard version includes a 128GB SSD and is designed to withstand tough environments such as kitchens, restaurants, and bakeries – resisting grease, dust, crumbs, and splashes.

Its energy-efficient processors and heat-dissipating aluminum structure ensure compliance with environmental standards and a low carbon footprint.

Overall, YUNO is a cost-effective, reliable, and long-term investment, combining technology, ergonomics, flexibility, and design to deliver outstanding value for money.

YUNO POS Terminal – Technical Specifications

Processor Options
YUNO B 3965U Black with Intel Celeron 3965U (fanless)
Or Broadwell i3 5010U or Bay Trail J1900 Quad-Core

Memory (RAM)
DDR4 – 8 GB standard, expandable up to 32 GB for 3965U
DDR3 SODIMM – 4 GB standard, expandable up to 8 GB for i3/J1900

Storage
M.2 SSD – 128 GB standard, expandable up to 512 GB with 2 slots
2.5’’ SSD – 128 GB standard

Display
15’’ TFT (1024 x 768)
15.6’’ TFT (1366 x 768) – YUNO WIDE
LED back-lighting
Flat, zero-bezel multi-touch touchscreen with projected capacitive panel (PCAP)
Brightness: 15’’ – 250 cd/m², 15.6’’ – 200 cd/m²

Input/Output Ports
4 serial ports with 5/12 V power supply for COM3/COM4
USB ports J1900 version: 5 x USB 2.0 + 1 x USB 3.0
i3 version: 4 x USB 2.0 + 2 x USB 3.0
LAN 10/100/1000Base-T
2nd Screen Port supporting HDMI, DVI, VGA (mini DisplayPort)
Cash Drawer 24/12 V DC
Audio internal loudspeaker, headphones, micro jack plug
Power Supply external 19 V DC
1 Mini-PCI Express slot for Wi-Fi

Miscellaneous
EMI CE/FCC Class A
Safety LVD, external adapter UL c/us, CE, TUV
Operating Temperature 0-40 °C
Front Panel dust- and splash-proof
Colours Black or White
Materials Polycarbonate cover + aluminium structure

Dimensions and Weight
15.1’’ format 360.1 x 171.5 x 316.1 mm, weight 10–11 kg
15.6’’ Wide format 402.2 x 171.5 x 295.3 mm, weight 11–12 kg

Compatible OS
Windows 10 IoT Enterprise, Windows 8 Industry, Windows 7 Pro, POS Ready 7, Linux, Android

Optional Extras

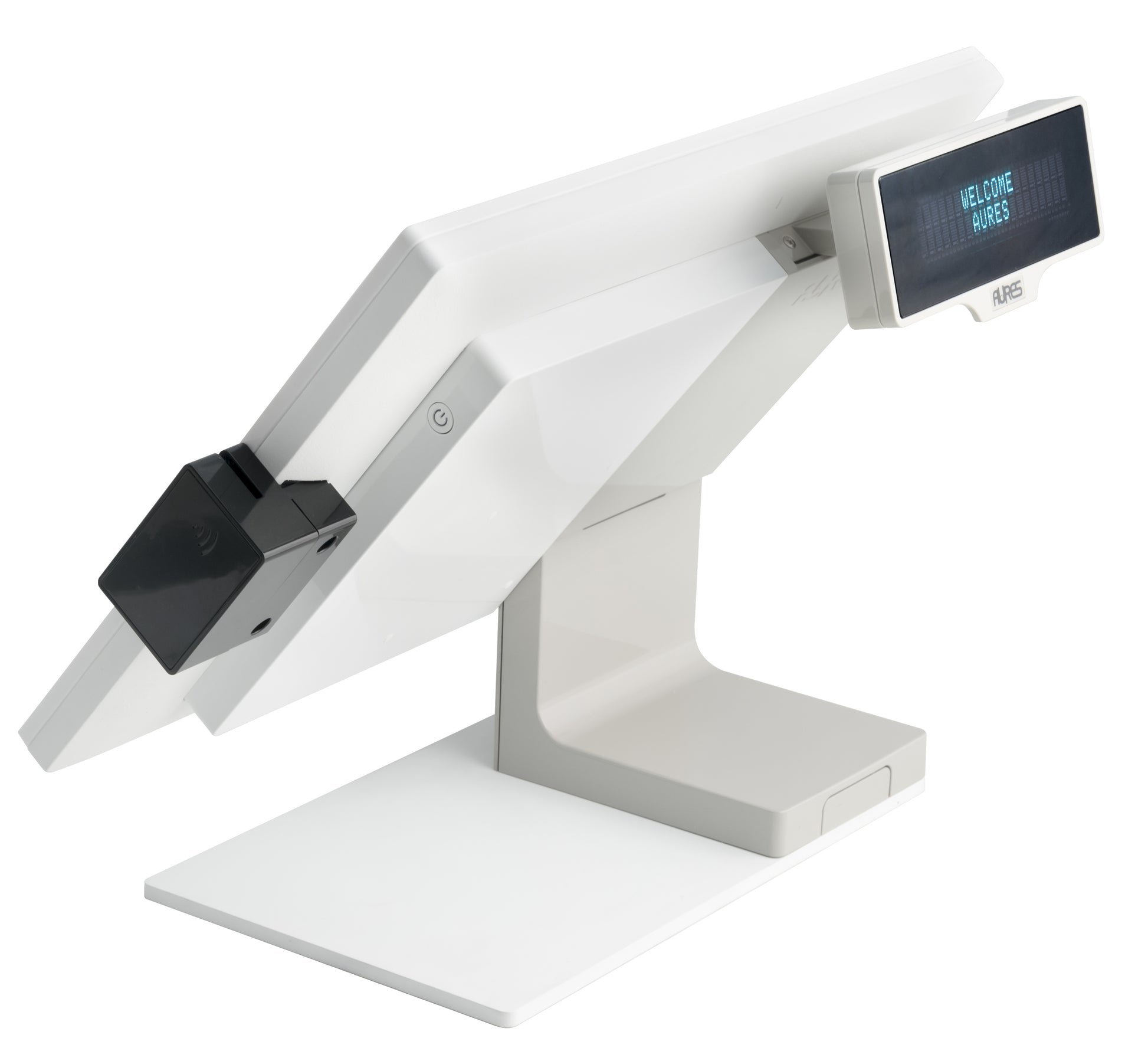

Multi-Technology reader for combined MSR and RFID
Bluetooth (BLE), NFC
Addimat and/or Dallas readers 1 slot at right of EPOS terminal
Fingerprint reader

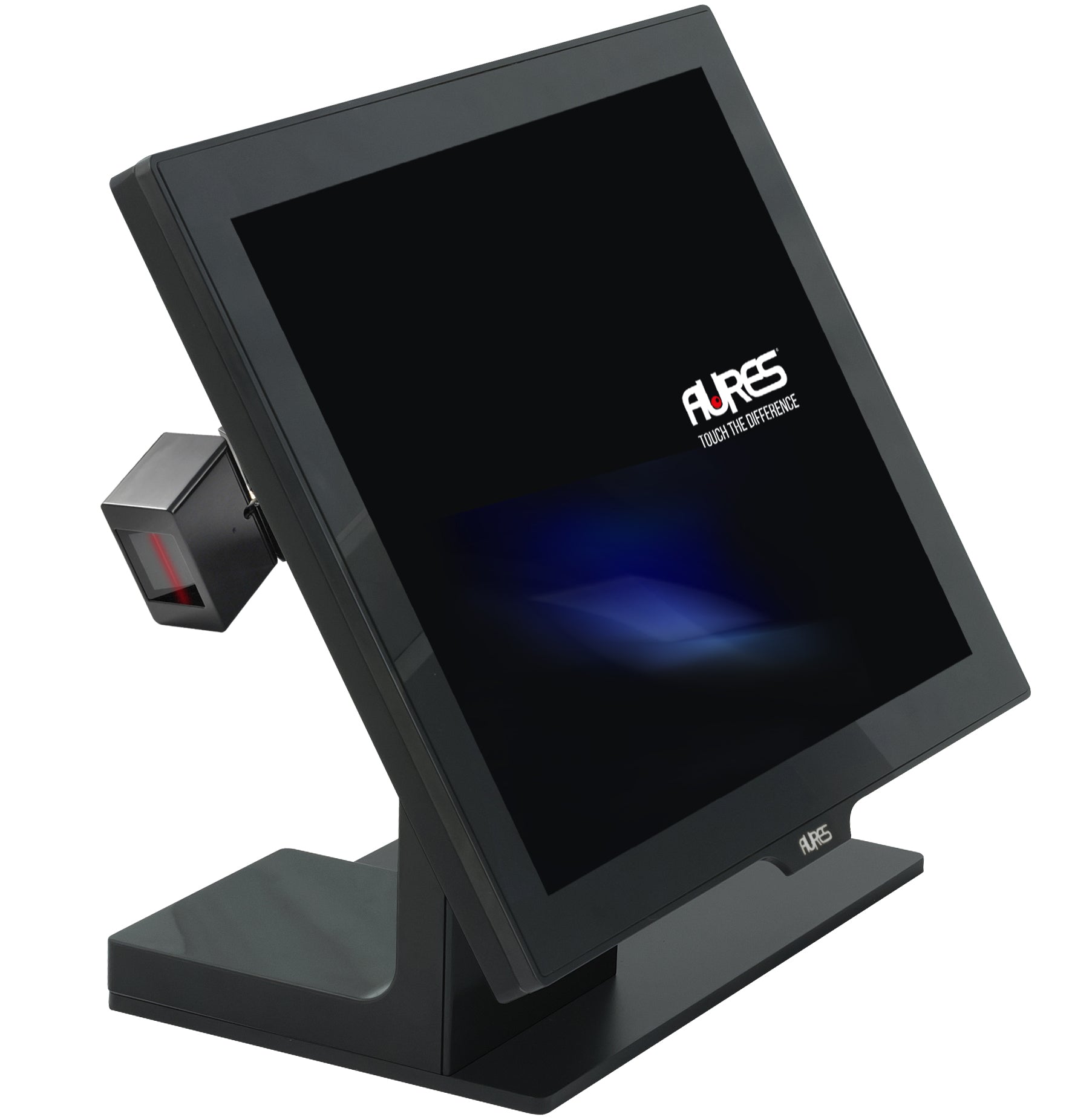

Barcode reader 1D and 2D

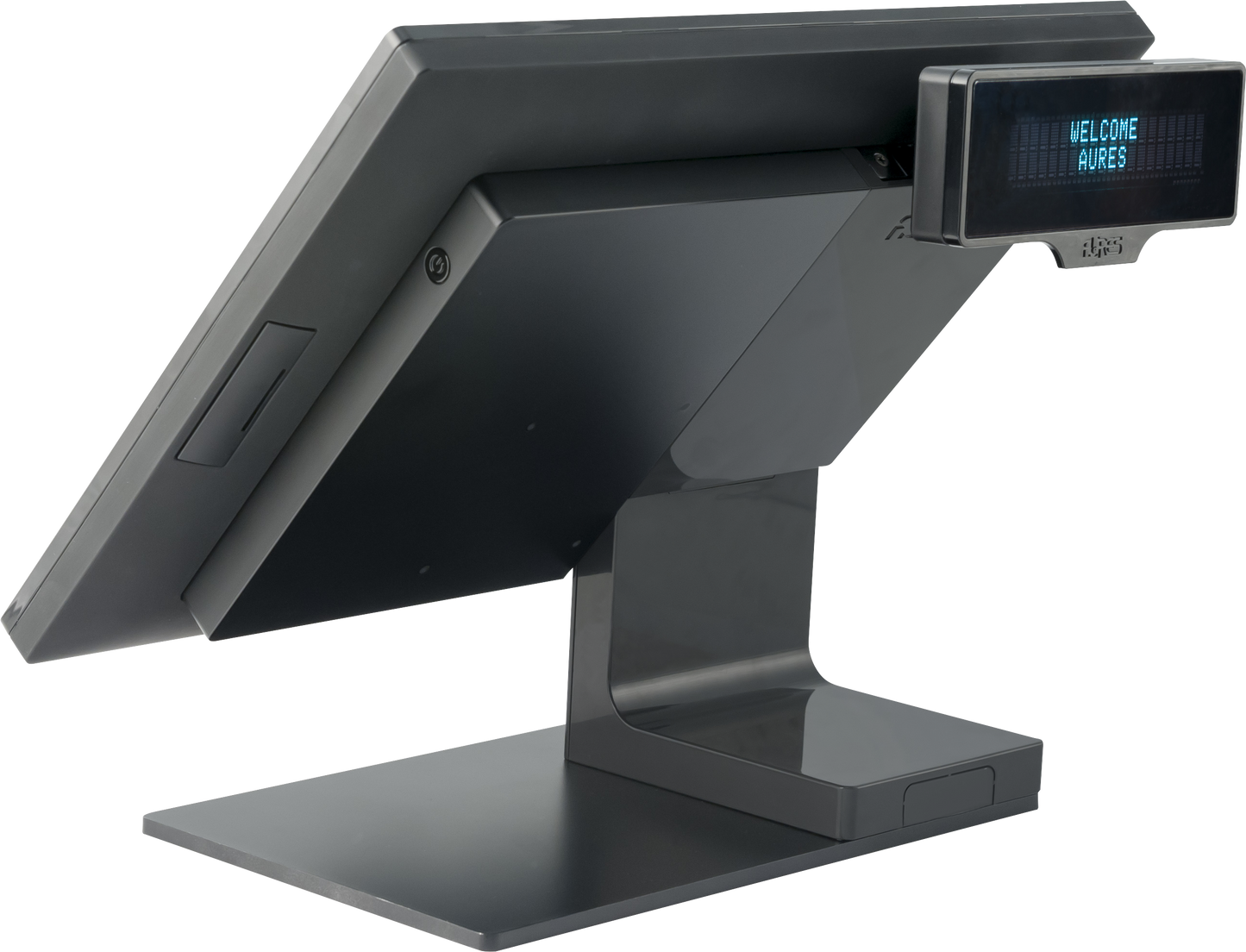

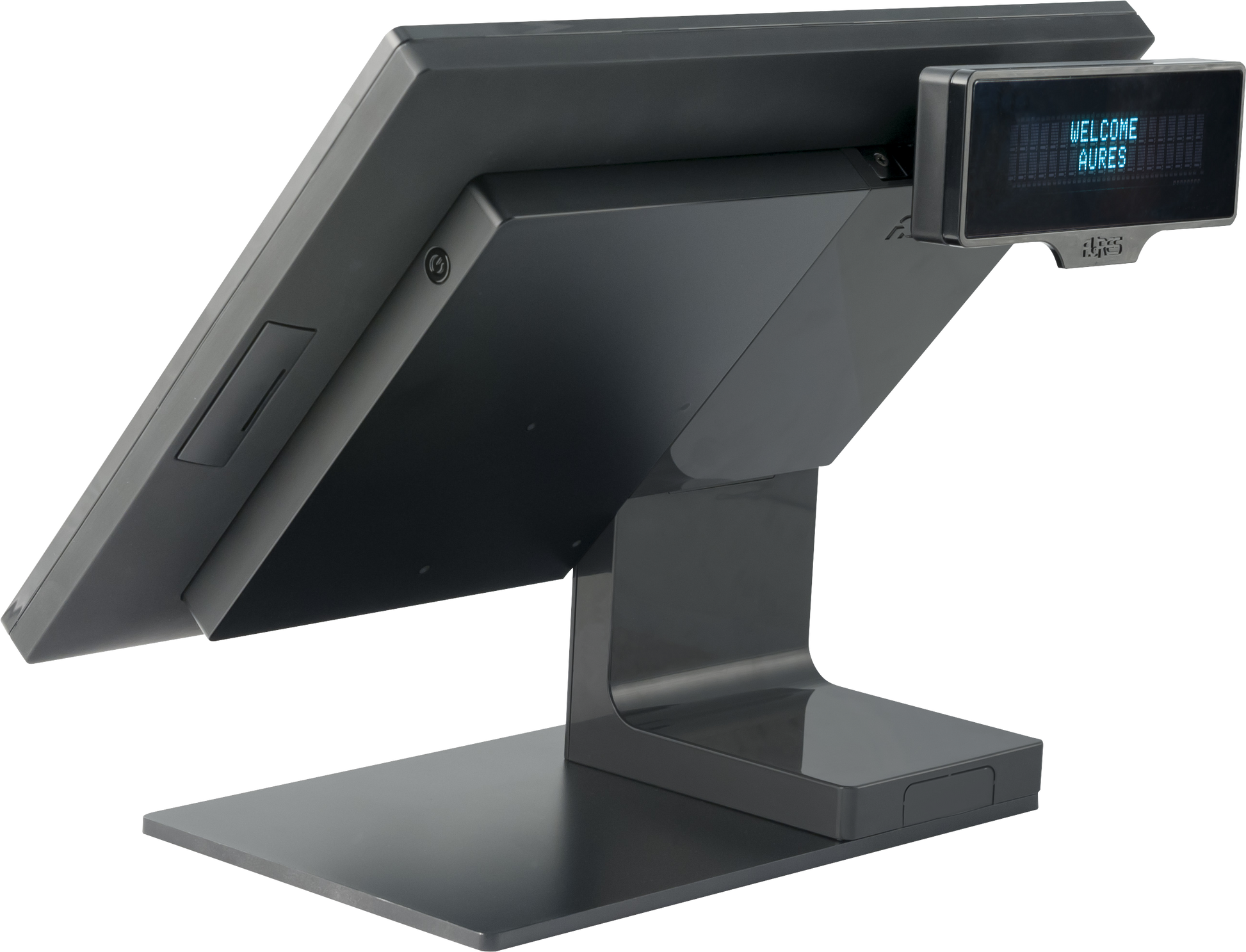

Customer display 20 characters x 2 lines (VFD)

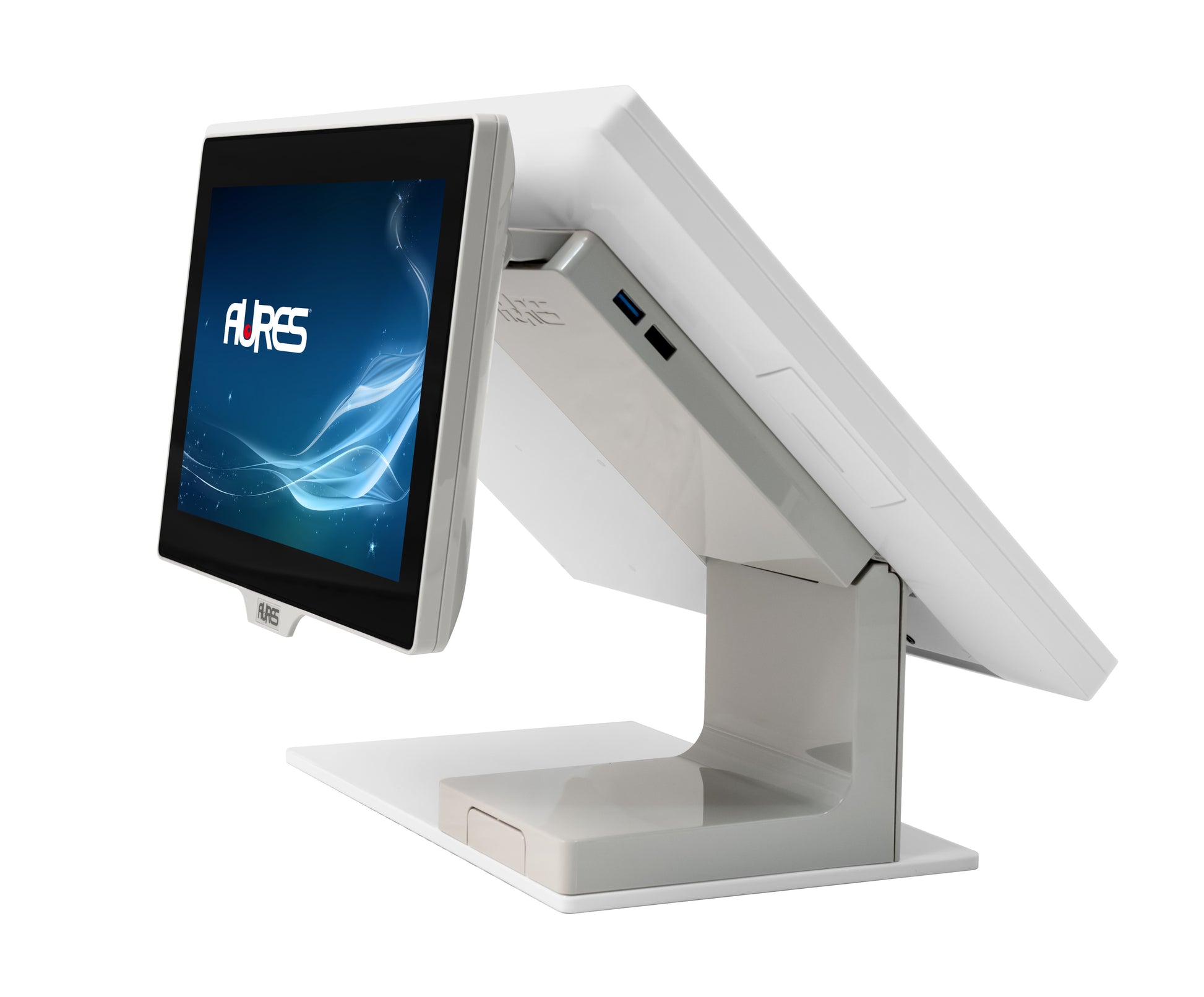

2nd screen 10.1’’ – 16:9 1024 x 600 Flat LED (EPOS digital signage)
Wi-Fi Internal 802.11 b/g/n
VESA fixings options for wall or pole-mounted applications (no base or stand)

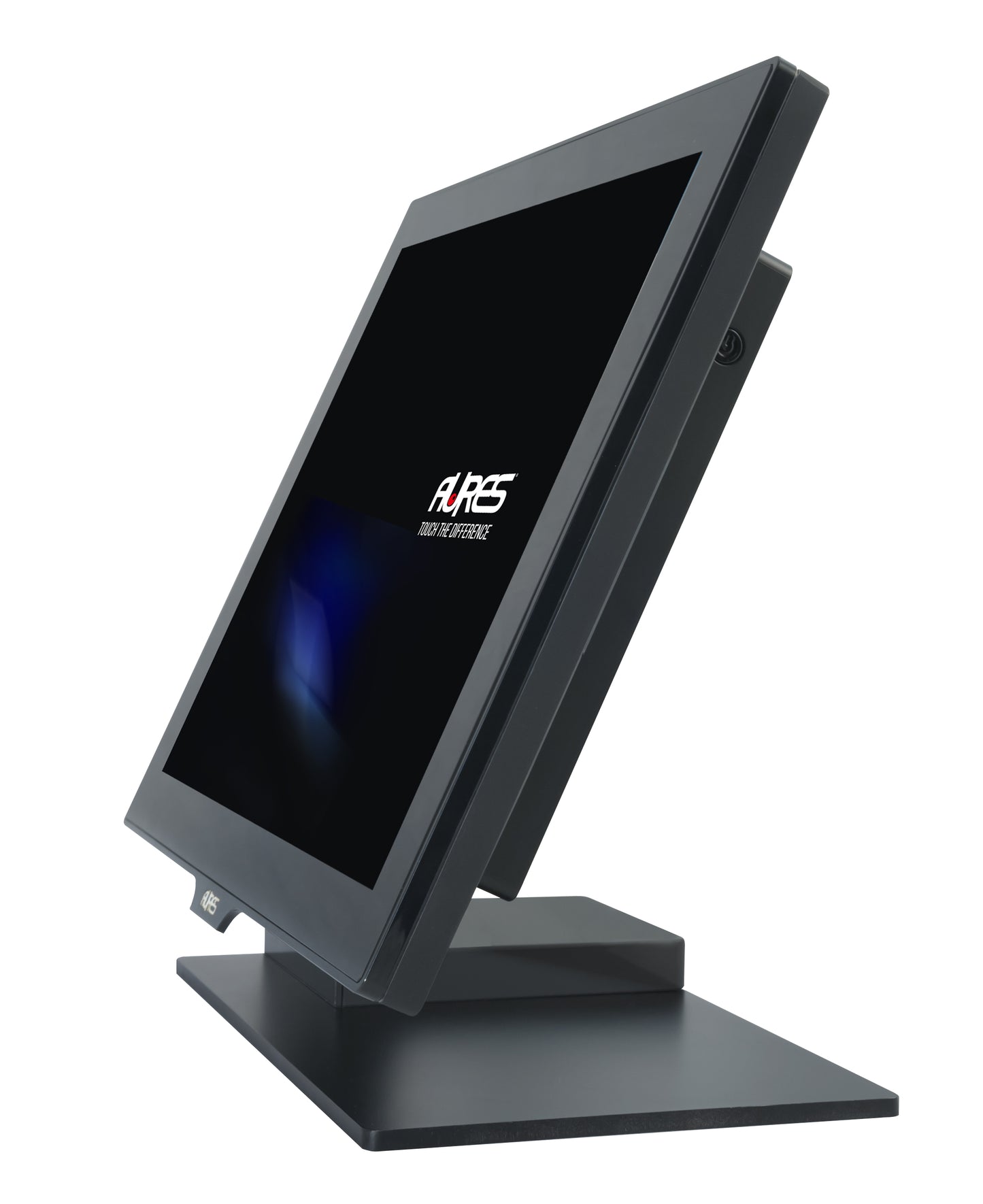

Simple screen options available as monitor-only version 15.1’’ touchscreens

Note
Optional extras such as customer displays, card readers, or fingerprint scanners are not included in the base price and must be ordered separately

1 years Return to Manufacturer Warranty
