Advantech Aures ODP444 Receipt Printer

ODP 444 POS Multi-Interface Cubic Thermal Printer

The ODP 444 is a versatile and compact thermal receipt printer designed for point-of-sale and service environments. Its cubic design and bi-positionable feature make it adaptable to different counter layouts, offering dual paper output either from the front or top cover. It is available in two interface versions, including USB, RS232C, Ethernet, Wi-Fi, and Bluetooth, making it suitable for modern and wireless POS setups.

Key Features

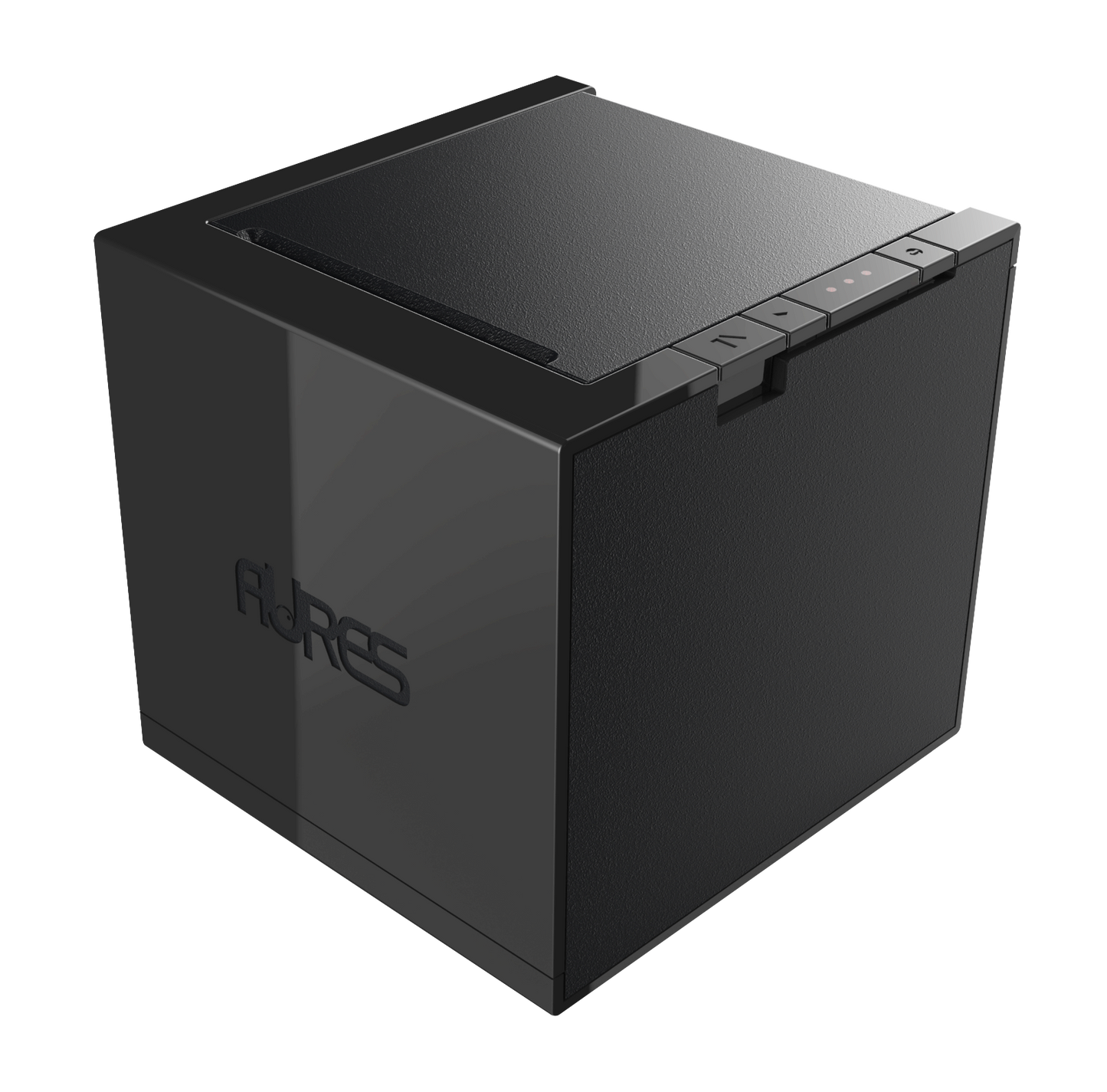

Compact and Bi-Positionable Design
The cubic shape allows it to be positioned vertically or horizontally on the counter, providing flexibility for space-constrained environments. Its sleek combination of glossy and matte black surfaces enhances the appearance of the POS station.

Durable and Splash-Proof
The front paper path is designed to protect the printer from dust, crumbs, and liquid splashes, making it ideal for restaurants, bars, bakeries, and catering environments.

Efficient and Eco-Friendly
The low-power motherboard with Energy Star certification enables automatic standby mode within one second of inactivity, reducing average power consumption by 30%.

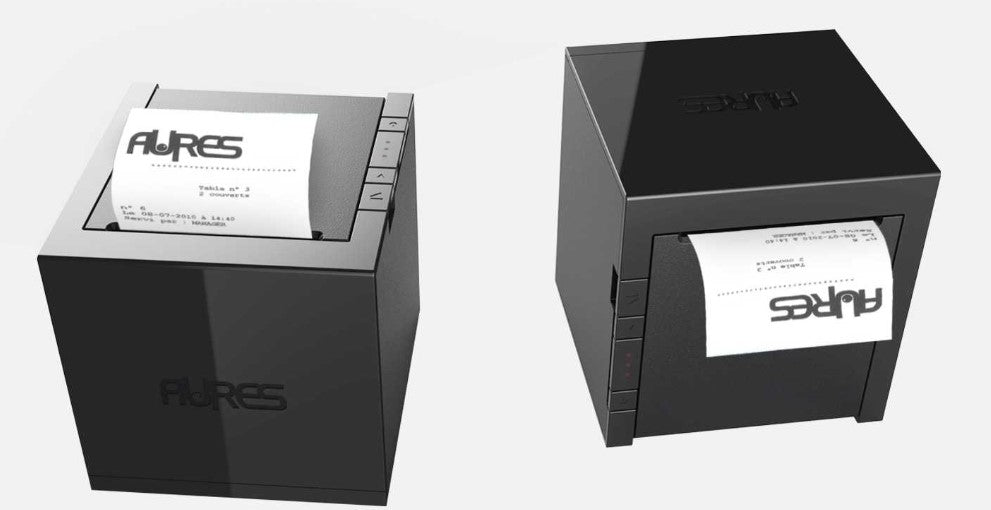

Dual Paper Output
Depending on counter configuration, the printer can print receipts from the front or the top, supporting flexible POS setups.

High-Speed Printing
Direct thermal printing at 180 dpi with a speed of 200 mm per second ensures fast and reliable receipt generation.

Connectivity Options
Two versions are available:

Model 1: Triple interface with USB, RS232C, and Ethernet

Model 2: Same as Model 1 plus Wi-Fi and Bluetooth for wireless operations

User-Friendly Features

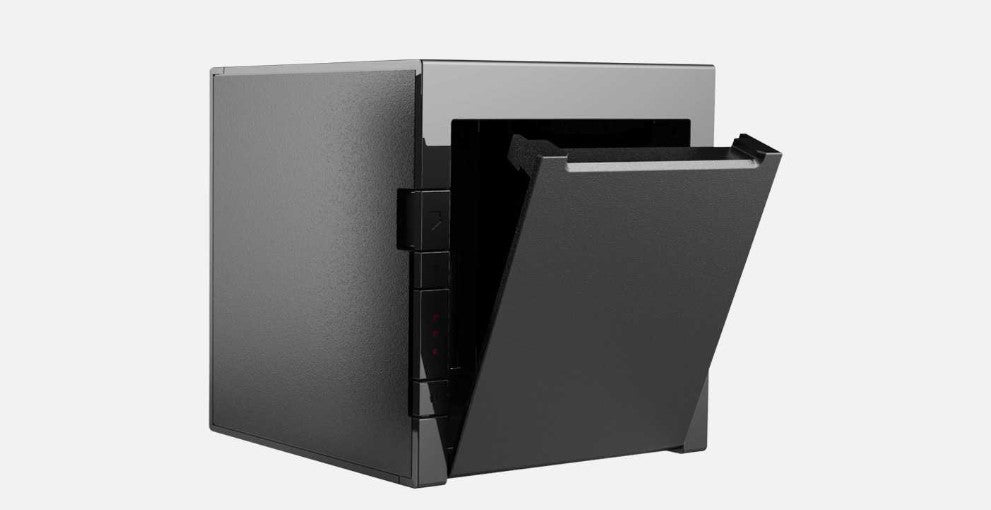

Automatic paper loading, integrated cable management, discreet stability pins, and an easy-to-access front panel simplify operation and maintenance.

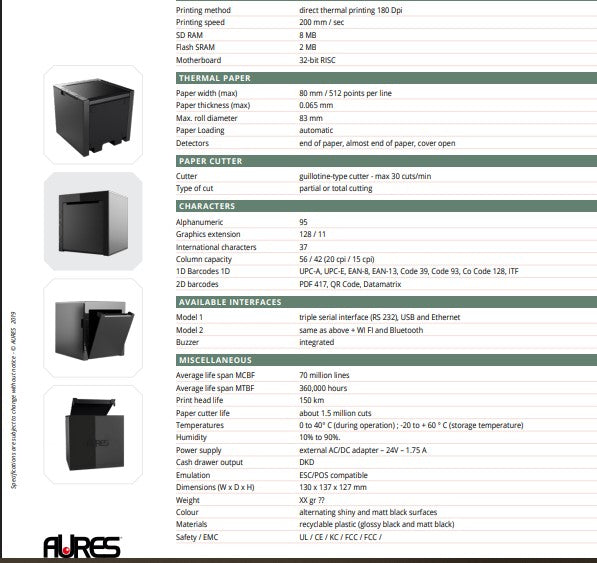

Technical Specifications

Printing Method: Direct thermal
Print Speed: 200 mm/sec
Resolution: 180 dpi
Paper Width: Maximum 80 mm / 512 dots per line
Paper Thickness: 0.065 mm
Max Roll Diameter: 83 mm
Paper Loading: Automatic

Characters & Barcodes:

Alphanumeric Characters: 95

Extended Graphics: 128 / 11

International Characters: 37

Column Capacity: 42 / 56 (20 cpi / 15 cpi)

1D Barcodes: UPC-A, UPC-E, EAN-8, EAN-13, Code 39, Code 93, Code 128, ITF

2D Barcodes: PDF 417, QR Code, Datamatrix

Memory & Motherboard:

SD RAM: 8 MB

Flash SRAM: 2 MB

Motherboard: 32-bit RISC, low power with automatic standby

Paper Cutter:

Type: Guillotine

Max Cuts: 30 cuts/min

Cut Type: Total or partial

Sensors: End-of-roll, near end-of-roll, cover open
Till Output Port: 1 dual port for 2 drawers (RJ11 6-pin connector)
Emulation: ESC/POS compatible
Power Supply: External 24V, 1.75A AC/DC adapter
Operating Environment: 0 to 40°C (operation), -20 to 60°C (storage), 10% to 90% humidity
Durability: MCBF 70 million lines, MTBF 360,000 hours, print head lifespan 150 km, paper cutter lifespan ~1.5 million cuts
Dimensions: 130 x 137 x 127 mm
Weight: Approximately 1 kg
Color: Glossy and matte black surfaces
Materials: Recyclable plastic
Compatible OS: Windows 10, Windows 11, Linux, Java POS

1 years Return to Manufacturer Warranty
