Advantech AURES JAZZ POS System

MODEL JAZZ – Processor Options

Option 1: Intel Elkhart Lake J6412 / Intel Tiger Lake i3-1115G4E

• Memory (RAM): 8GB DDR4 (expandable up to 32GB)

• Graphic Memory: Intel HD Graphics / Intel Iris Xe Graphics

• Storage: 2 x NVMe M.2 slots, 1 x 256GB included

• Display: 15” TFT 1024x768

• Touch Panel: Slim and edgeless, multi-touch, projected capacitive technology

• Brightness: 400 cd/m²

Option 2: Intel Bay Trail Celeron J1900 / Intel Skylake i3-6100U / Intel Kaby Lake i5-7300U

• Memory (RAM): 4GB DDR3L SODIMM (J1900) / 4GB DDR4 SODIMM (i3/i5), expandable up to 8GB (J1900) or 16GB (i3/i5)

• Graphic Memory: Intel HD Graphics

• Storage: 2 x SSD M.2 slots, 1 x 128GB included

• Display: 15” TFT 1024x768

• Touch Panel: Slim and edgeless, multi-touch, projected capacitive technology

• Brightness: 15” 450 cd/m²

🔹 به

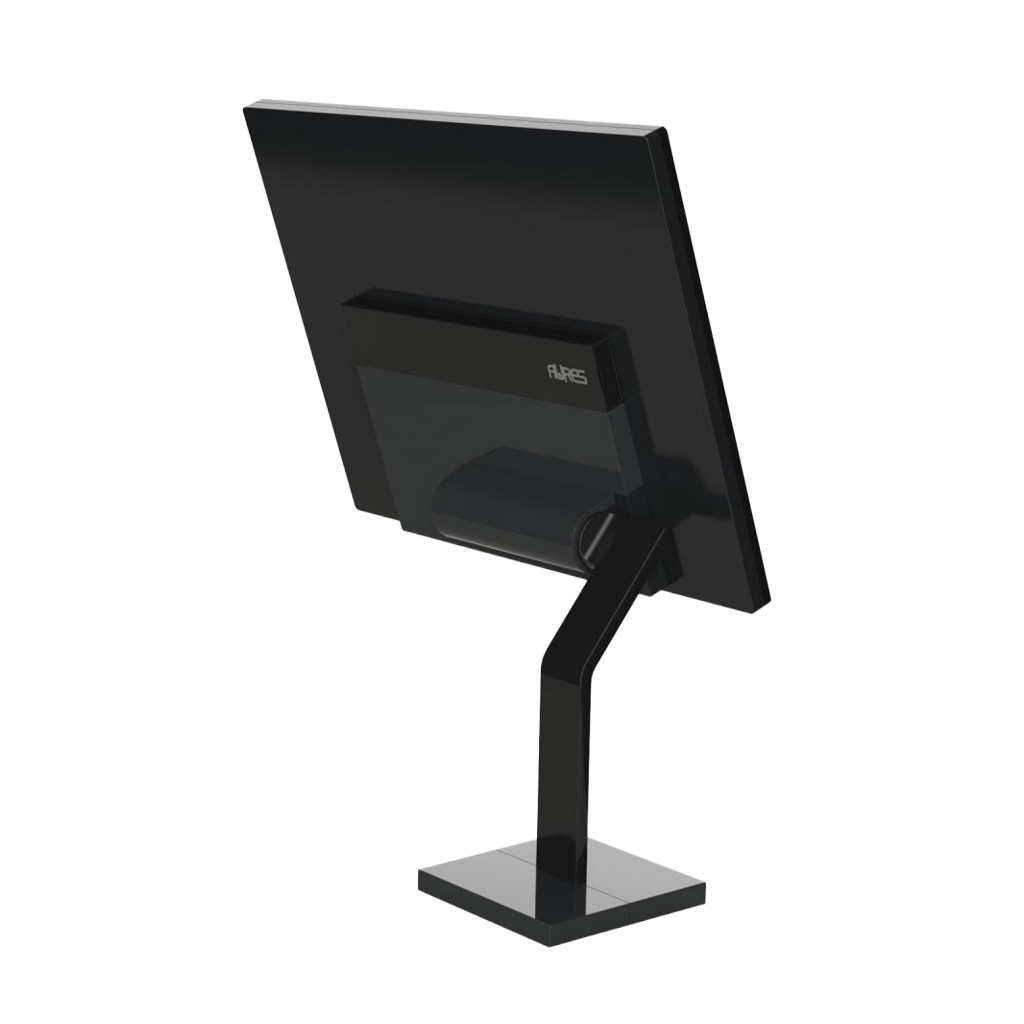

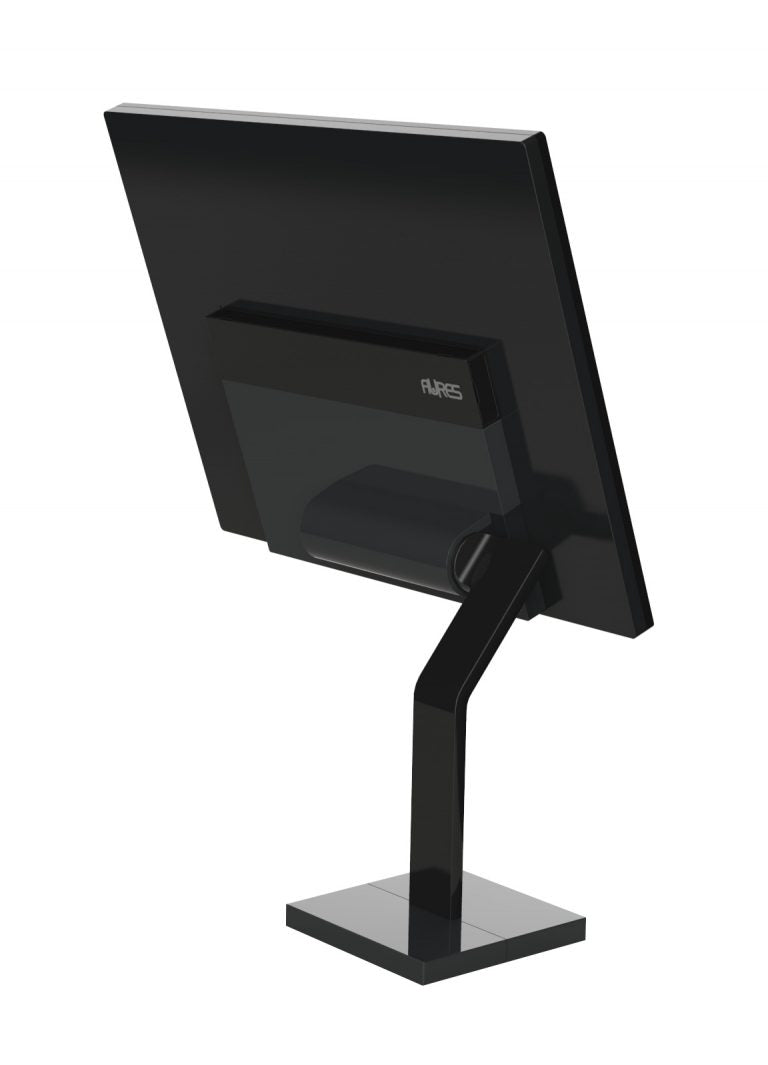

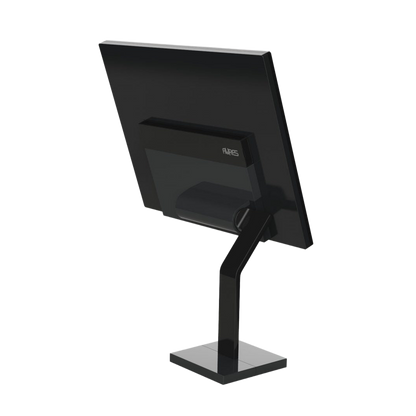

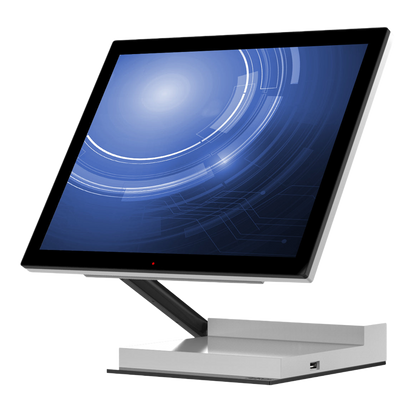

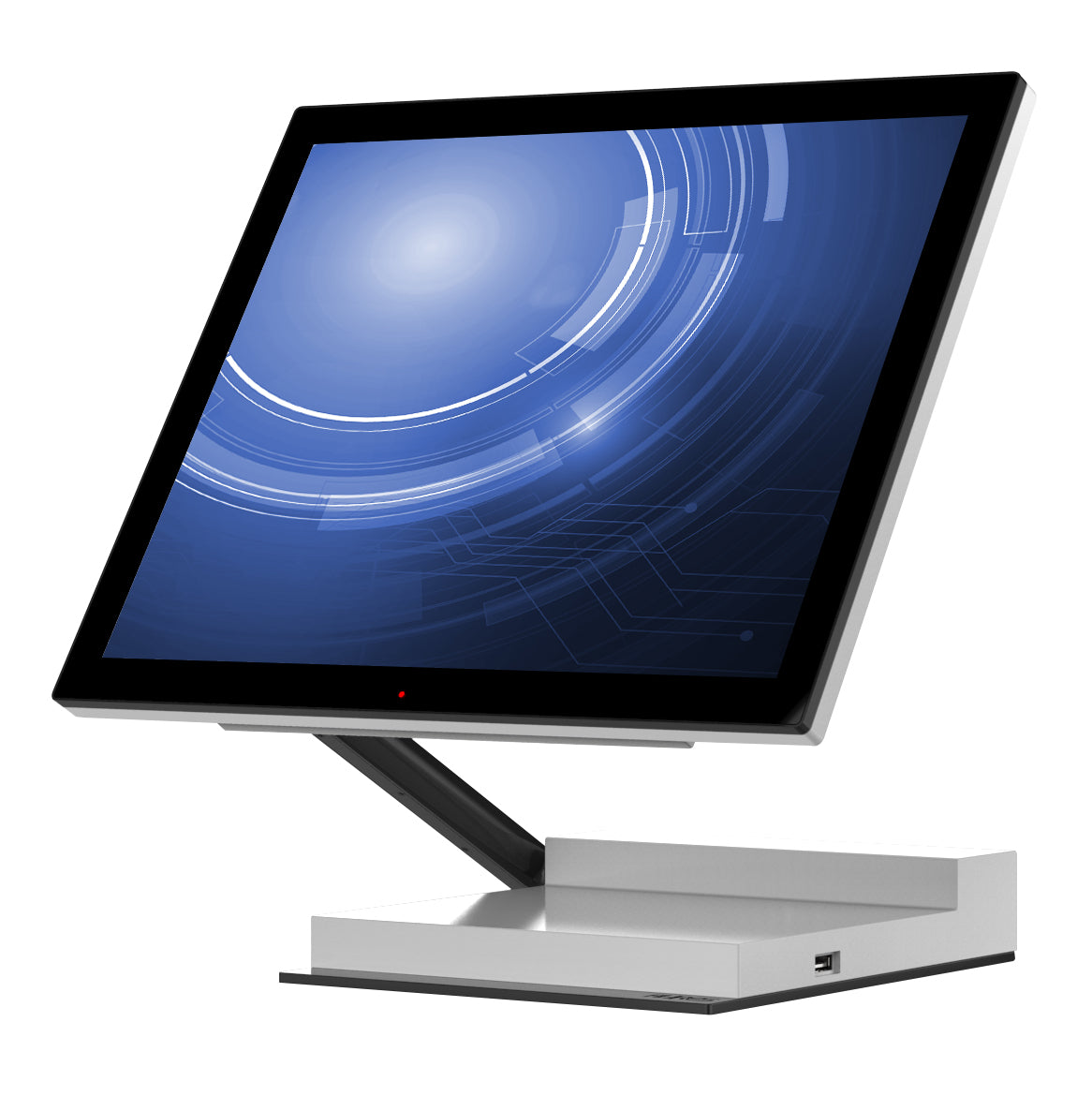

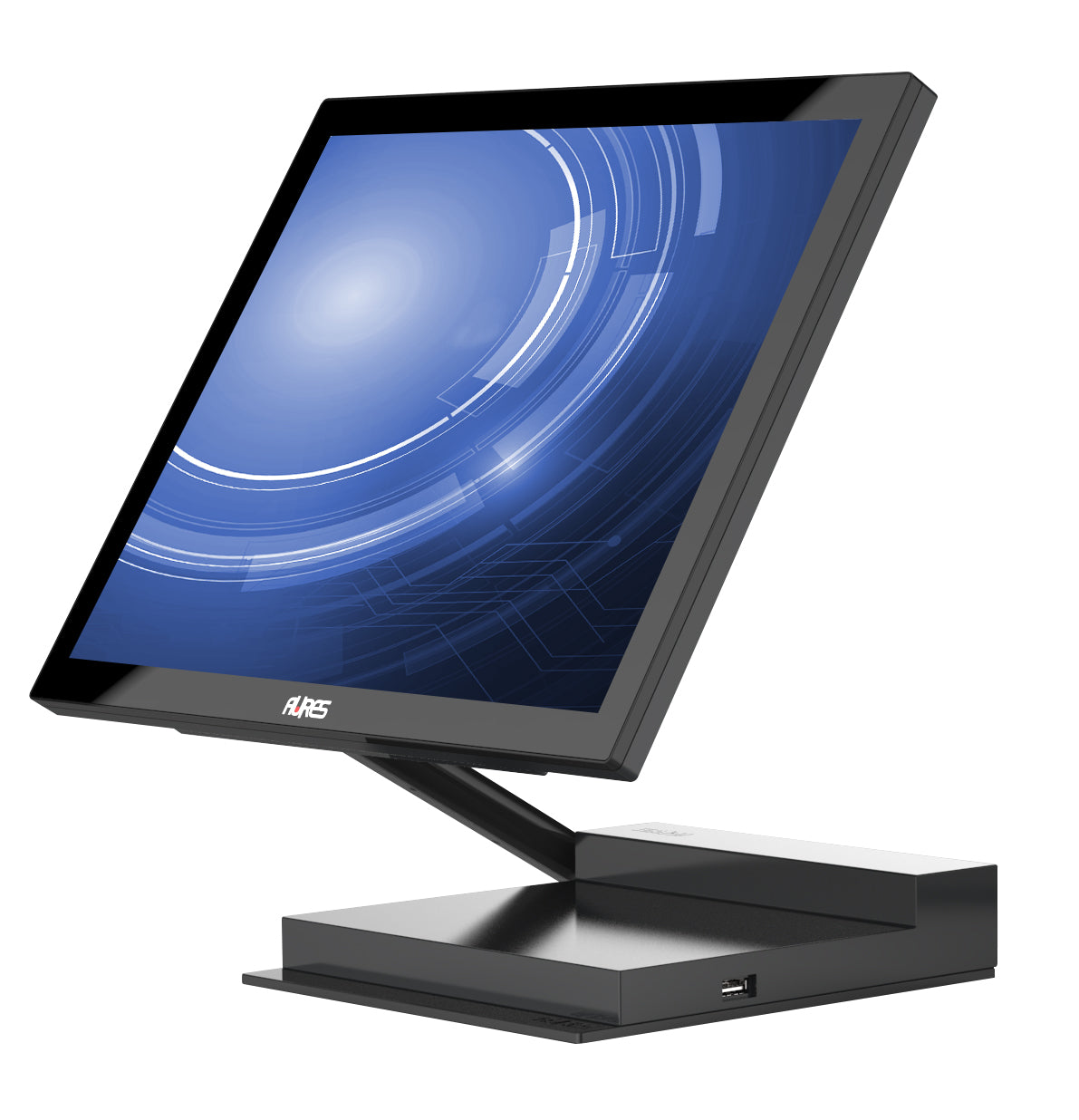

JAZZ POS Terminal

Sleek, Timeless Design
JAZZ is a concept in POS hardware that offers a sleek and timeless design.

Flexible Processor Module
Available as a classic POS terminal, it integrates a motherboard supporting two types of processors.
Using a clever drop-and-slide technique, the processor module can be replaced in seconds without any tools – simply unclip the back cover and slide out the module.

Single USB-C Connection
JAZZ incorporates a single USB-C cable capable of handling multiple functions including power, USB, and video data.

Robust and Efficient Structure
The attractive “Z” shaped cast aluminium and zinc structure provides strength, resilience, and optimal cooling.

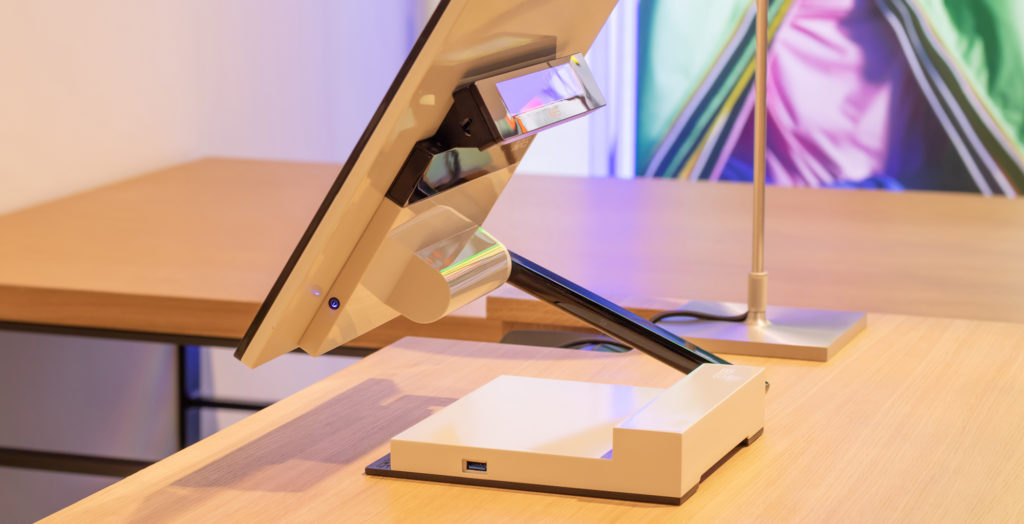

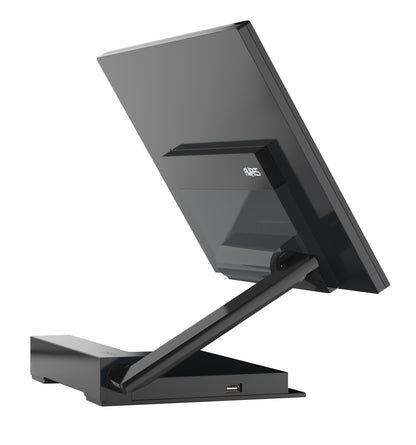

Adjustable Touchscreen

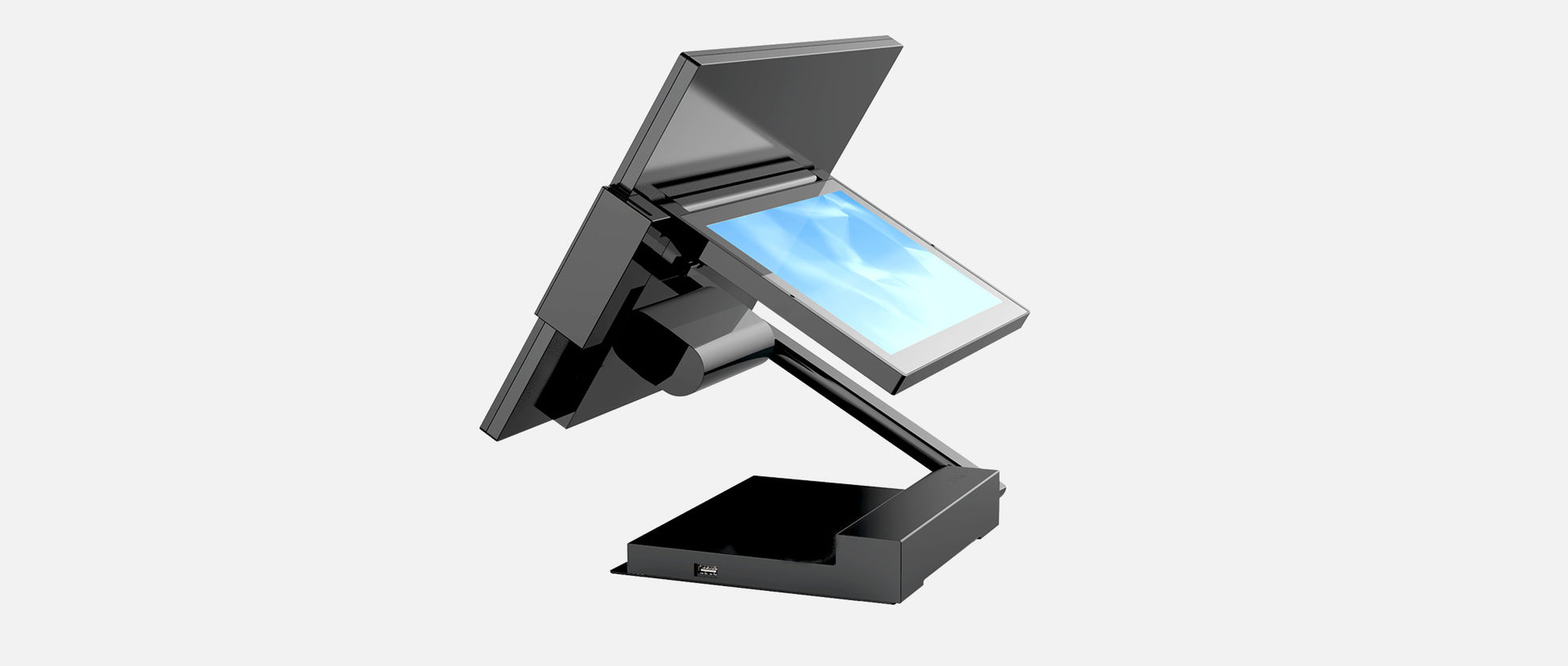

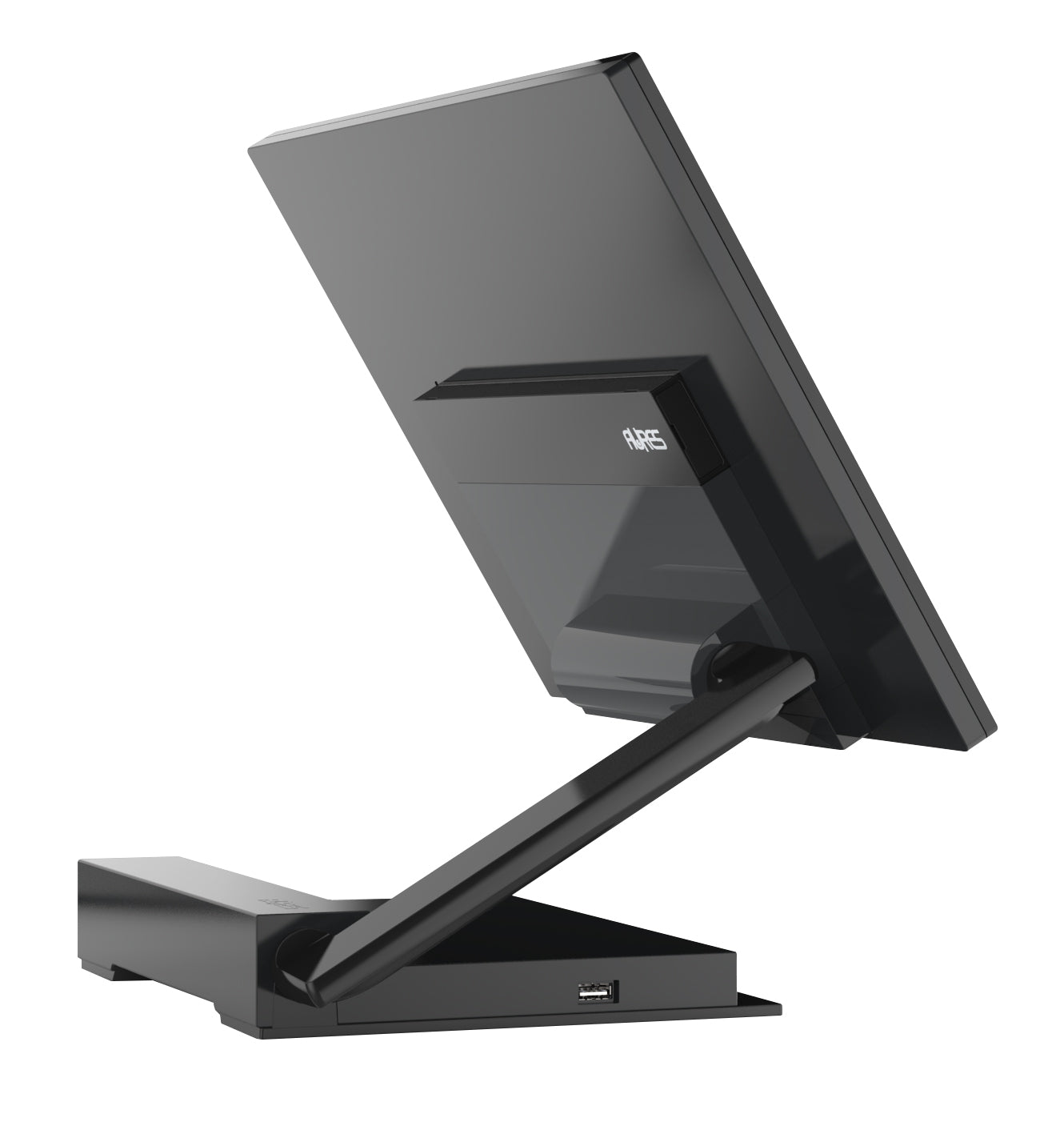

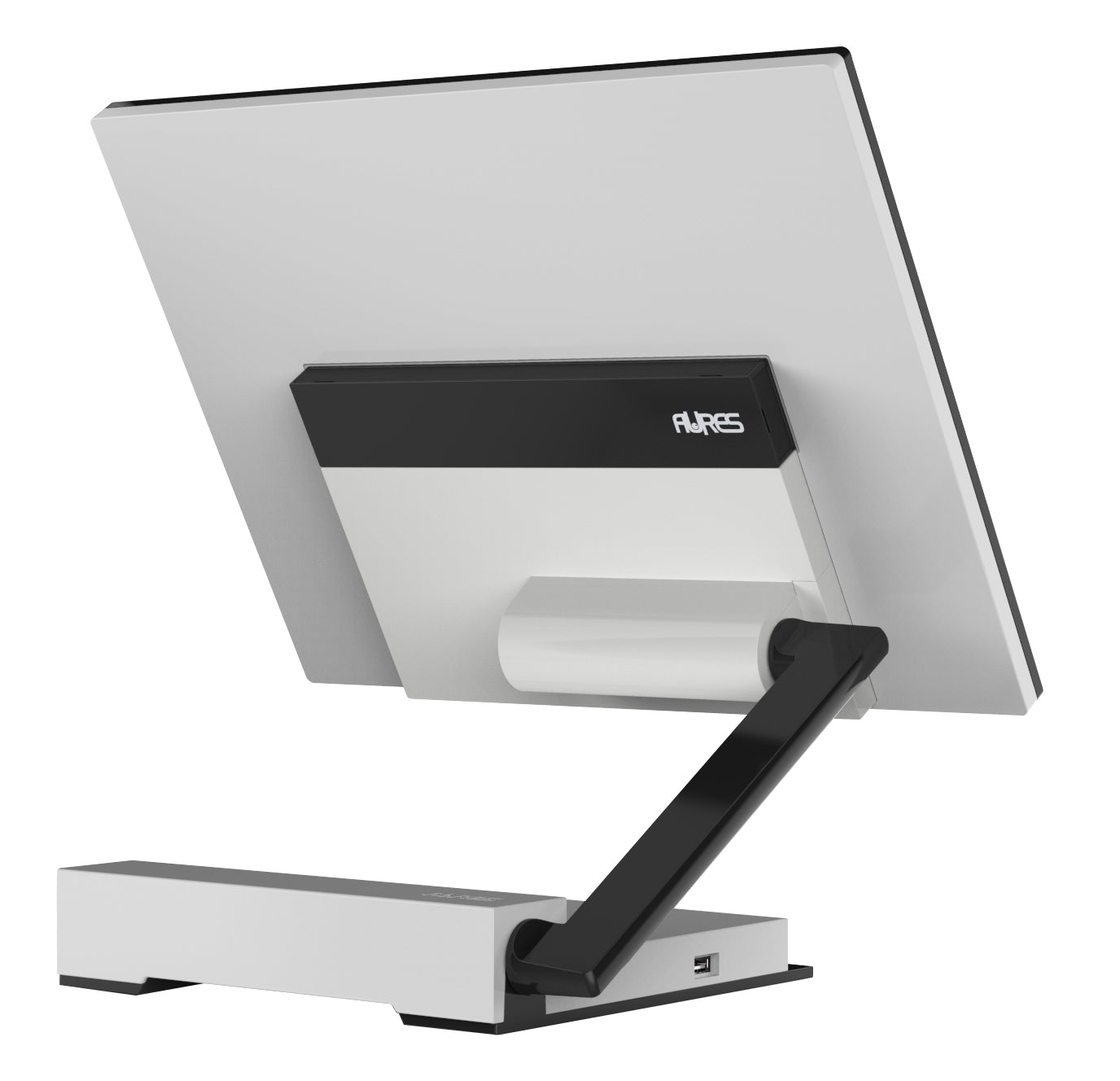

The flexible double-hinge design allows the PCT Windows-compatible touchscreen to be adjusted easily in height and angle, up to a completely flat position, catering to all needs.

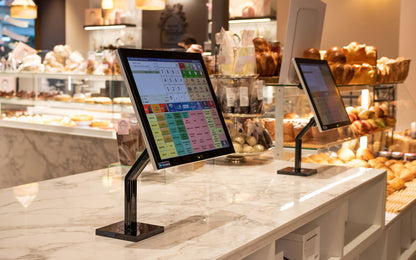

Compact Footprint

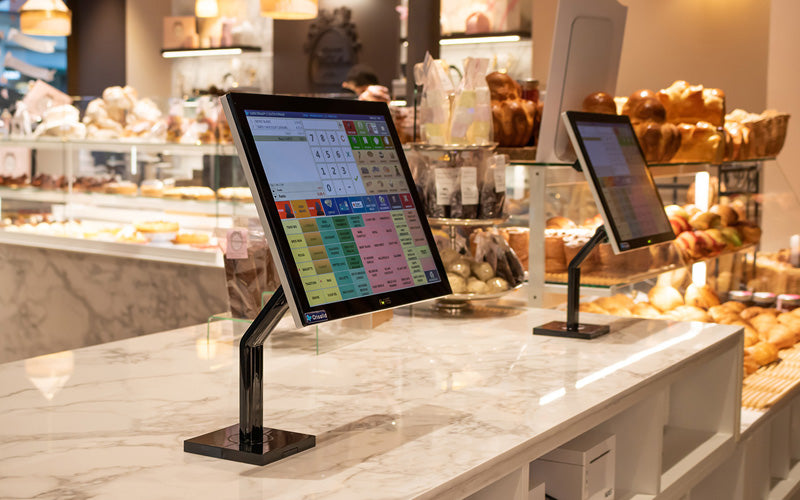

With its small footprint, JAZZ fits perfectly into even the tightest spaces on the sales counter, optimising available workspace.

Note

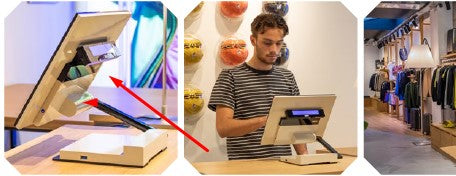

Optional extras such as customer displays, card readers, or fingerprint scanners are not included in the base price and must be ordered separately

1 years Return to Manufacturer Warranty
